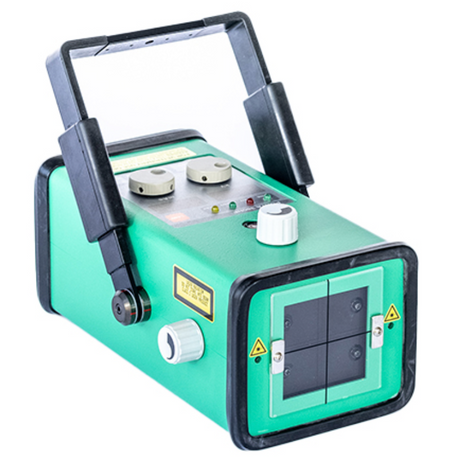

Porta 380HF X-Ray Generator

HIGH FREQUENCY PORTABLE X-RAY UNIT
This is a great choice for mixed practice.

Light and powerful enough to handle most large animal cases in the field then come back to the practice and tackle most anything that comes through the door.

The 380HF delivers 15 mA at 80kV making it a 1.2kW output unit. Maximum of 20mA is available right up to 62kV before it changes to 15mA to cover the range up to 80kV. Displays kV and mAs.

The tube has a 0.8mm focal spot giving sharper detail especially on fine structures. Twin laser pointers for accurate focal. Light is activated with the lamp button or by the first stage of exposure. The display reverses a with button push.

Eight memory factor settings for your most common work. Digital ready if sync is required.

Tough, reliable well-built Japanese unit that will give you years of reliable service and great value.

- 1.25kW Power output – 30mA@40-42kV, 20mA@43-62kV, 15mA@63-80kV
- 40-80kV in 1kV steps
- 0.3 – 20 mAs in 19 settings
- Collimator with 30 second timer, 2.5mm AL 2@80kV
- Twin Laser Pointers focusing at 75cm Focal Distance – accurate daylight centering
- Weight – 6.2kg

Supplier

Distribution

Australia and New Zealand

Category

Large Animal Radiography Equipment
